Data Centre Water Treatment Principles
Introduction
Data Centres Water Treatment is critical for data centres that process and store our internet data. Up time is critical with 99.999% as a standard. Data servers emit large amounts of heat and they need to be cooled. Cooling systems and water treatment systems need to be designed, operated and maintained up to a very high quality standard. Problems such as corrosion, scale, Legionella risk, and biofouling that come with water being used as a cooling medium, need to be managed intelligently.
Cooling Water Needs
Water is an extremely efficient and cost-effective medium for cooling data centres due to its high specific heat capacity compared to air. This means that water can absorb more heat without experiencing a significant temperature increase according to the formula Q = mC(Delta T). For instance, let’s consider the amount of water and air required to cool an 8kW server rack. While 3200 m3/hour of air would be needed, only 2 m3/hour of water would suffice, demonstrating the significant difference in heat transfer efficiency. However, water is a precious resource and it needs to be managed sustainably. This required indepth design and operational know how. Some data centres use evaporative cooling towers some use adiabatic cooling towers in colder climate countries where water cooling is needed only in the summer.
Some data centres use Cryogenic Liquid Nitrogen cooling systems that operate at very low temperatures down to -196 degrees C. At such low temperatures, high tech chip energy efficiency can improve by a scale of x 4. The liquid nitrogen then carries the heat and offloads it to some fluid like water, glycol or a mix of the two.
Humidification of Air in Data Centres
Another use of water in data centres is for maintaining a certain level of humidity in the atmosphere in data centres which would prevent the air from becoming too dry which can lead to the formation of static electricity which can have a detrimental effect on sensitive electronics. Demineralized sterile water is normally used in humidifiers. To produce demineralized air you need to treat potable water with RO or with a mixed bed ion exchanger system.
Bespoke Water Treatment Technologies Used
Depending on the source of water – which could be a bore hole, an open river (surface water), treated sewage effluent, sea water or least likely a potable water source – the water treatment technology differs. Also whether a wet evaporative cooling tower is used or a dry Air HEX (Heat Exchanger), the water quality requirements are different.
Bore holes in Slough, UK for example contain ferrous iron and if this is not removed, then the water turns red due to ferric oxide and all downstream filters get clogged.
Mains water in Holland is soft and there is no chlorine in it. So it is pointless to install a softener or an active carbon filter.
RO is normally used to demineralize the water and achieve higher cycles of concentration. But demin water is corrosive and special materials need to be used in the design of the pipes and equipment.

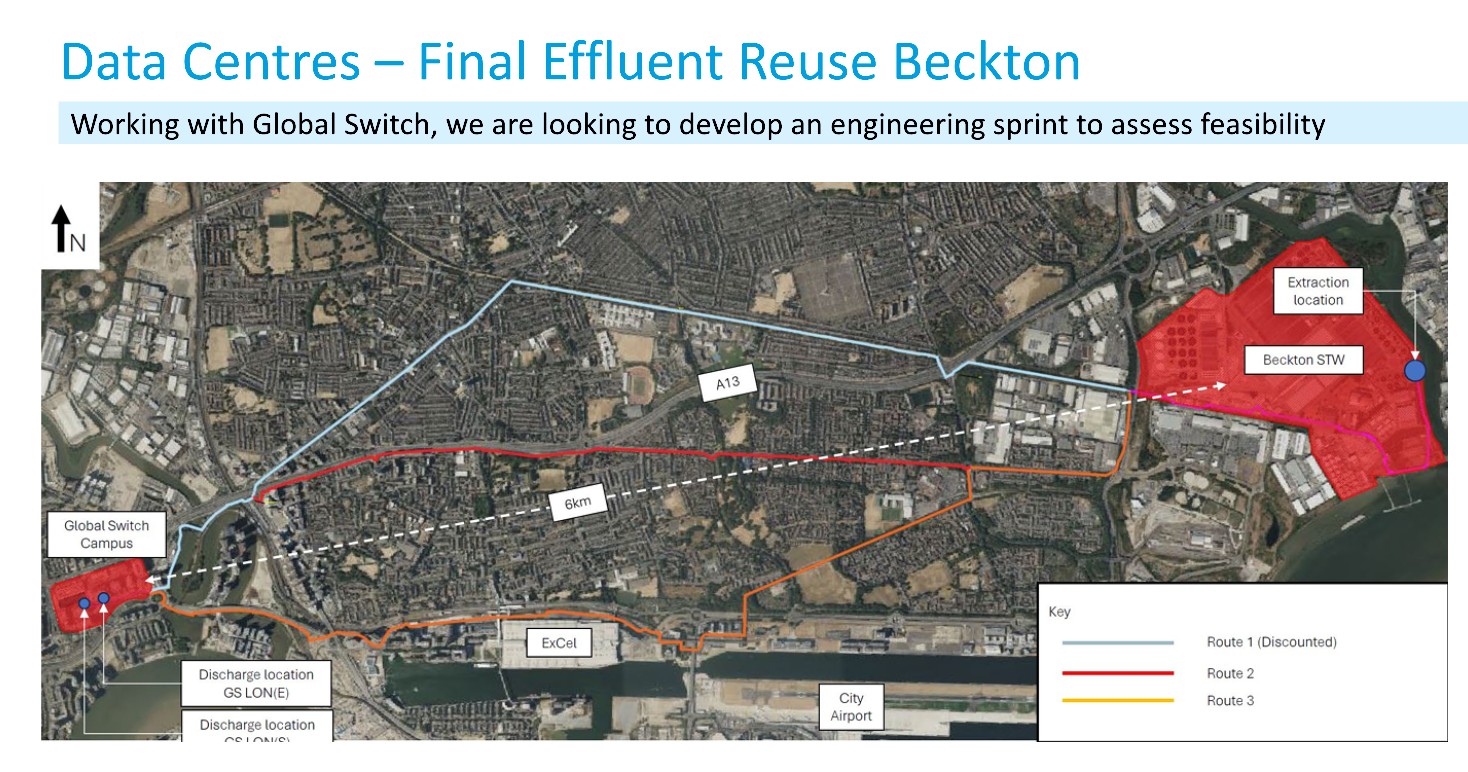

If treated sewage effluent is the available water source, then the design is completely different. Bacteria and TOC become the main culprits to worry about before subsequent water treatment steps.
If sea water is the medium for cooling, then corrosion resistant, expensive materials need to be used.
Experience of Kremesti Environmental Consulting Ltd.
Rami Elias Kremesti, MD of Kremesti Environmental Consulting Ltd, has worked on Data Centre projects in the UK and the EU. Managing water treatment for a data centre is very similar to managing the water treatment needs for the cooling systems of a power station which also has high standards for up-time and quality. Rami brings his ten years of experience on power stations to help clients to design water treatment systems for data centres.
Operational know how is also very critical because systems like Reverse Osmosis (RO) skids require careful operational monitoring and interventions when they become scaled or fouled or both.
Kremesti Environmental has designed training courses to help designers and operators of water treatment systems on data centres to achieve maximum efficiency and minimal downtime.
Figure 1.: Softeners, Active Carbon Filters, Ozone Dosing Systems, Reverse Osmosis Skid as part of a data centre water treatment project for a Dutch Data Centre
Environmental Impact
Data Centers are not environmentally friendly period, despite all the green washing. They consume huge amounts of energy and large amounts of water for cooling. Large amounts of electronic waste are generated at the end of their life-cycle. The European Commission remains the world’s conscience when it comes to developing legislation to protect its citizens from the harmful effects of over digitization such as AI and social media.
Regulatory Frameworks – EU and UK
In the EU, the Energy Efficiency Directive (EED) mandates data centres with 500kW (0.5 MW) or more IT power demand to report energy performance data to a new European database as of September 2024. The EU F-Gas Regulation requires phased reductions in the use of high-global warming potential (GWP) refrigerants starting in 2025. In the UK, data centres are subject to the Climate Change Levy (CCL), with energy-intensive businesses using Climate Change Agreements (CCAs) for potential reductions. The UK also has the UK GDPR and Data Protection Act 2018 for data privacy needless to mention.
Conclusion:
To maximise value for investment in a Data Centre project, an efficient water treatment design team is required to begin with. To minimise cost overruns, you need a consultant to over see the project. This is where Kremesti Environmental Consulting Ltd can help. After the system comes into operations, you need an expert water treatment operations team to keep things running smoothly and this requires expert training.
A Look Into the Future
As the AI bubble starts to burst or mildly put, to deflate, the demand for data centres will plateau. The social media craze will die down slowly as people realise the falseness and harm of it all and slowly but surely, people will start to prefer to be off line and to be engaged in more meaningful activities. ChatGPT is already becoming boring and people using it even more so. There is no AI replacement for the intelligent, gentle, kind human touch and connection…. or time spent in Wild Nature in contemplation of the beauty of life. The Machine cannot replace the beauty of the human spirit because the Machine has so Soul…
Rami Elias Kremesti M.Sc., CSci, CEnv, CWEM
About the Author:
Rami Elias Kremesti is a chemist by trade and philosopher at heart. He holds an M.Sc. in chemistry from the USA and has been working in the water and waste water treatment field for over 20 years. He has published several books on Rumi poetry, aesthetics and the beautiful as well as Judaism.
Rami is chartered with CIWEM in the UK as well as the UK Science Council and UK Society for the Environment.
